fpControl is a Control System for Fischer Panda Inverter Generators, asynchronous Generators, VS Generators and AGT DC Generators.
System components
The fpControl system consists of the following components:
- Generator Control »fpControl Generator Control – Servo« (fpControl GC-S)
- Control Panel »fpControl Control Panel – Generator« (fpControl CP-G)
- Connection Board »fpControl Connection Board – Generator« (fpControl CB-G)
- Communication Interface »fpControl CAN Interface – SAE J1939« (fpControl CI-SAE J1939)
- »Communication Interface CI – NMEA 2000®« (fpControl CI-NMEA 2000®)
- Measurement Unit »fpControl Measurement Unit – MU-3ph/DC« (fpControl MU-3ph/DC)
- Measurement Unit »fpControl Measurement Unit – MM3« (fpControl MM-3)
- »fpControl Paralleling Device« (fpControl PD-A)
- »fpControl CAN-Bus« (fpCAN)
The main components Generator Control, Control Panel and Connection Board are always part of the system. The basic configuration can then be upgraded with the optional components. All system components are connected via the fpCAN.
Basic configurations

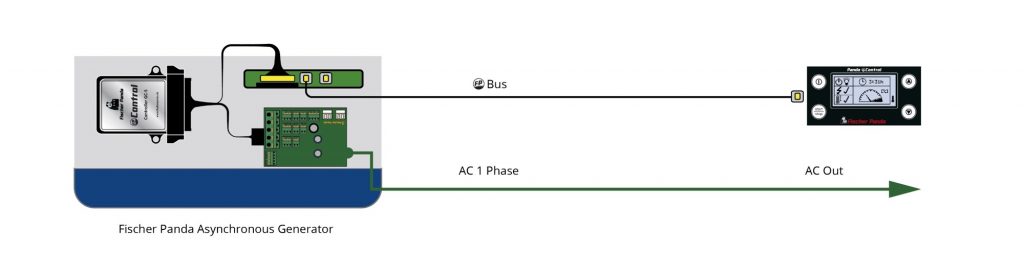

Basic configuration of a 1-phase asynchronous Generator

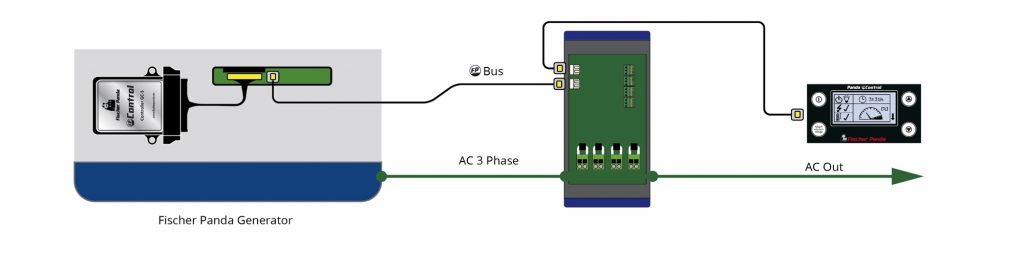

Basic configuration of a 3-phase asynchronous Generator
Measurement Unit and Control Panel. All components are connected via the fpCAN.

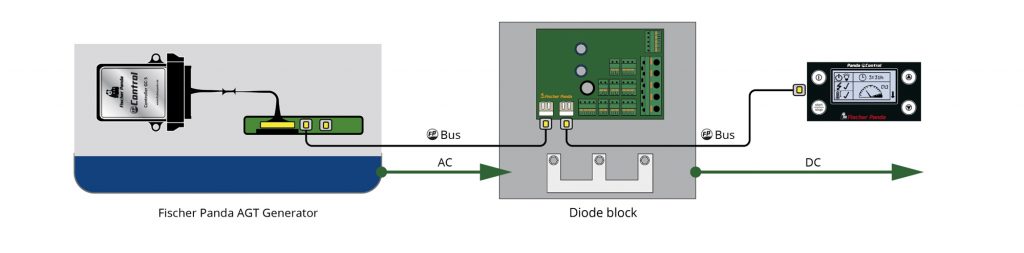

Basic configuration of an AGT Generator

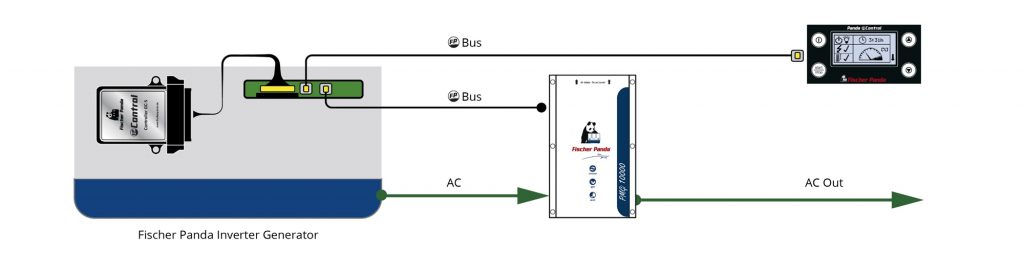

Basic configuration of an Inverter Generator
Inverter and Control Panel. All components are connected via the fpCAN.
