PMGi Connector »Control«

The socket/plug »Control« on the front plate of the PMGi is used to connect supply voltage and bus communication of the inverter.

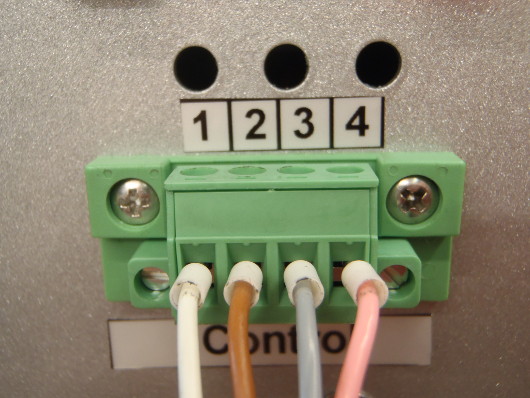

Connector »Control« on the front plate of a PMGi

Pin assignment

PinColorLine
1White +12V (DP+)
2BrownGND
3Grey Data-B (Bus)
4Pink Data-A (Bus)

Download a PDF document on the terminal assignment of the PMGi connector »Control« here.
