Datasheet »iControl2.5 Generator Control«

New Control for Inverter Generators

There is a new version of the iControl2 controller for the inverter generators. Both the control board and the remote control panel have received a hardware update.

In its new version, the control board is called »iControl 2.5«. It is an intermediate step before a completely new control will appear with the »iControl 3« version. The control panel comes directly as »iControl 3 remote control panel«.


The control board and the remote control panel of the new »iControl 2.5« are pin-compatible with the previous »iControl 2« hardware and have the same dimensions. Therefore the new iControl 2.5 can replace the previous hardware for all generator types with iControl 2 control.

The iControl 2.5 Control Board

  • Fischer Panda item number: 0034924
  • Release: C:3.01.xxx or higher, C: Controller | 3 Hardware release | 01 Software release | xxx Generator type

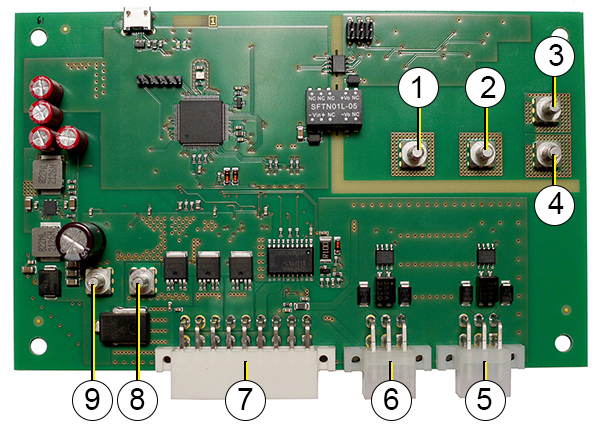

Connectors of the iControl 2.5 Control Board
Connectors of the iControl 2.5 Control Board
1Phase L3 »IN / OUT«
2Phase L2 »IN / OUT«
3Phase L1 (load output to inverter)
4Winding L1 (input from winding L1)
5external bus communication interface (j1939 based »fpCAN«)
6iControl 3 panel
7 Wire harness
8 Output glow plugs
9 Supply voltage U+

The Control Panel »iControl 3«

  • Fischer Panda item number: 0034806
  • Release: P: 3.01.000 or higher, P: Panel | 3 Hardware release | 01 Software release | 000 Revision
  • The controls are the same as the iControl 2 panel.
  • The known display pages of the iControl2 panel remain unchanged.
  • The assignment of the socket for the panel connection cable (1) is pin-compatible with the iControl2 panel.
  • The automatic start contact is on a separate connection socket (2).
  • The display pages for error messages have been given a new layout.

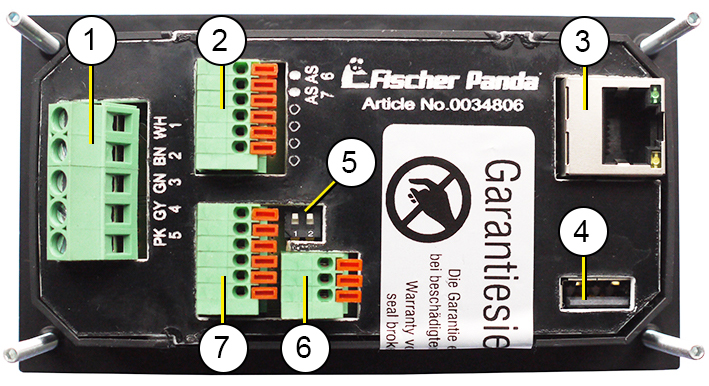

Panda iControl3 panel, backside with connectors, DIP switch and closed housing
15-pin Phoenix socket for panel connecting cable
2Automatik start (pins AS 6 and AS 7)
3Network, for example Ethernet (for future use)
4USB (for future use)
5Double DIP switch, switching on/off the terminating resistors for CAN bus 1 and CAN bus 2
6Fischer Panda CAN Bus 2, CAN interface, j1939 based »fpCAN« (for future use)
73 universal outputs (for future use)
Assignment of the socket for the panel cable
1UBUSwhite (WH)Bus supply voltage
2GNDbrown (BN)Bus ground
3RZLgreen (GN)Exciter wire
4CAN Lowgrey (GY) Fischer Panda CAN bus 1
5CAN Highpink (PK)Fischer Panda CAN bus 1

Inverter Compatibility

Hardware

Note: The assignment of the socket for the connection cable on the PMGi is pin-compatible with the iControl2 system.
Software

Note: The inverter must use the software release 3.0 or higher to work with »iControl 2.5«.
