Application

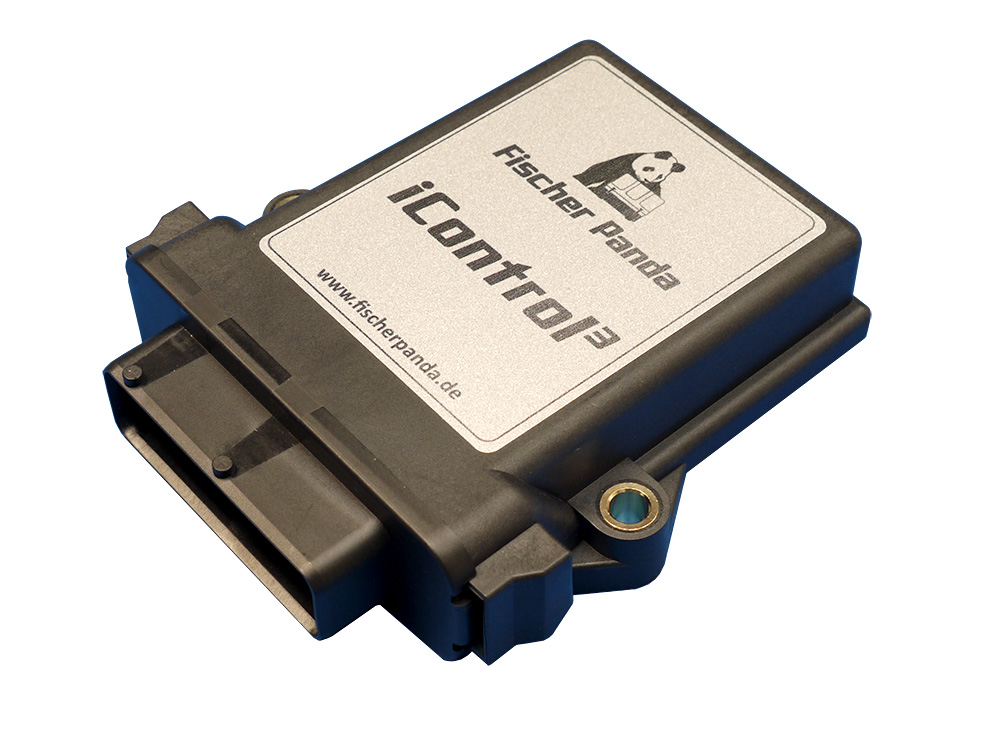

The »iControl3 Generator Control« is a Generator Control for Fischer Panda inverter synchronous generators.
Product Description
As the main component of the iControl3 system, the »iControl3 Generator Control« takes all monitoring and control functions.
The Generator Control communicates with the other system components via the »fpCAN«.
During operation, the iControl3 monitors critical operating conditions and switches off the generator in case of a fault.
The iControl3 is suitable for the 12 V starting system and is installed inside the generator capsule.
Connector
| Terminal | IN / OUT | Function |
| 1 | OUT | Glow plug(s) |
| 2 | IN | Spare input |
| 3 | — | not used |
| 4 | — | Supply voltage Inverter |
| 5 | — | not used |
| 6 | OUT | Water pump |
| 7 | OUT | Booster (optional, depending on generator type) |
| 8 | — | not used |
| 9 | — | GND |
| 10 | — | CAN high 2 |
| 11 | — | VCCS +5V servo motor (red wire) |
| 12 | — | GND |
| 13 | — | GND |
| 14 | — | Supply voltage+ |
| 15 | OUT | Electric starter |
| 16 | IN | Spare input |
| 17 | IN | Cylinder head temperature |
| 18 | IN | Exhaust manifold temperature |
| 19 | IN | Oil pressure switch |
| 20 | IN | Universal input |
| 21 | IN | Emergency stop+ |
| 22 | — | CAN high 1 |
| 23 | — | CAN low 2 |
| 24 | — | Bus supply voltage |
| 25 | — | GND servo motor (black wire) |
| 26 | OUT | Potential-free output (PWM-) |
| 27 | IN | Pick-up sensor |
| 28 | — | Supply voltage+ |
| 29 | OUT | Fuel pump |
| 30 | IN | Spare input |
| 31 | IN | Spare input |
| 32 | IN | Winding temperature |
| 33 | — | GND |
| 34 | — | GND |
| 35 | IN | Emergency stop- |
| 36 | — | CAN low 1 |
| 37 | IN | Wake up |
| 38 | — | GND |
| 39 | — | PWM servo motor (yellow wire) |
| 40 | OUT | Potential-free output (PWM+) |
| 41 | — | not used |
| 42 | — | GND |
Environmental Specifications and Physical Data
| Supply voltage | 12 V-13,5 V (12 V automotive) |
| Current consumption, nominal | 80 mA @14,4 V |
| Current consumption, stand-by | < 0,1 mA |
| Operating temperature | -20 °C to +105 °C |
| Storage temperature | -30 °C to +125 °C |
| Housing | Automotive, PBT GF30 |
| Protection class | IP65 |
| Overall dimensions | 134,2 x 118,7 x 36,3 mm (L x W x H including connector) |
| Connector | 42-pin connector |
| Weight | 0,25 kg |
| FP part number | 0034981 |

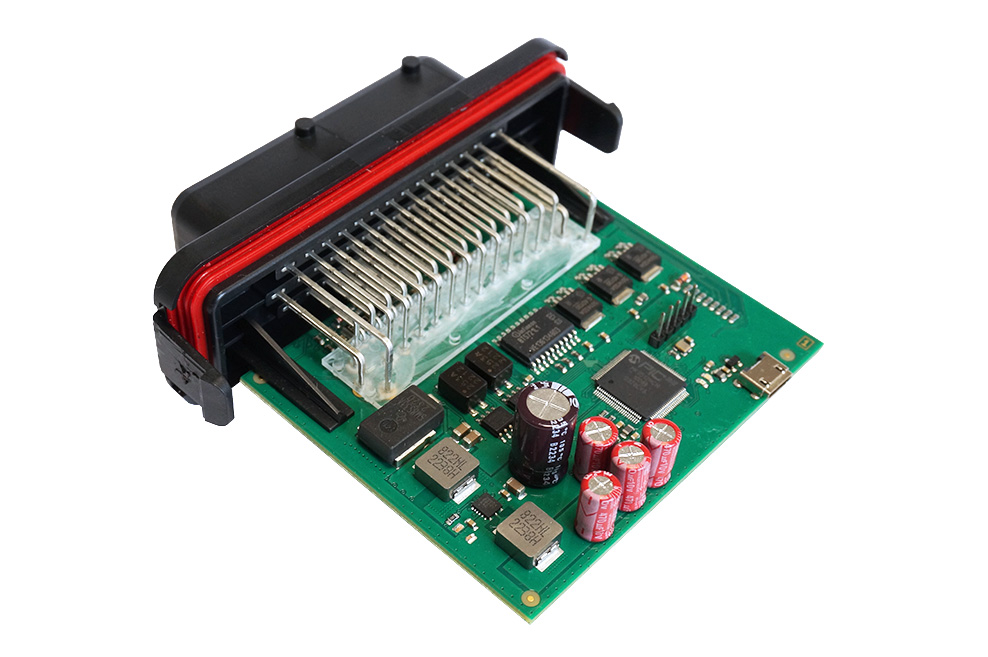

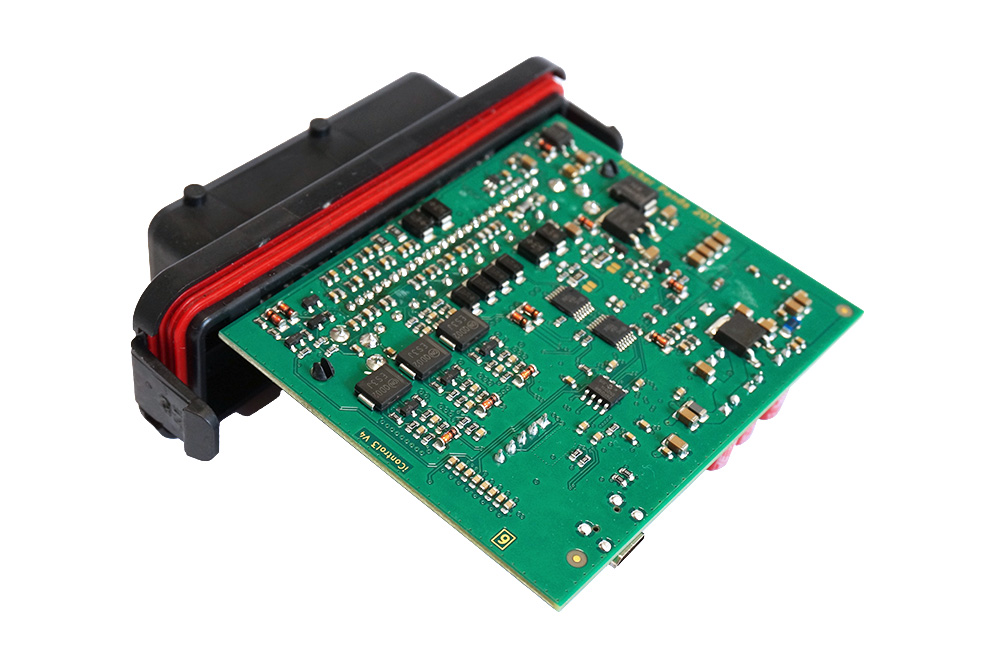

| Printed circuit board | FP2103 |
